MOLDED SEALS

Standard & Non-Standard O-Rings

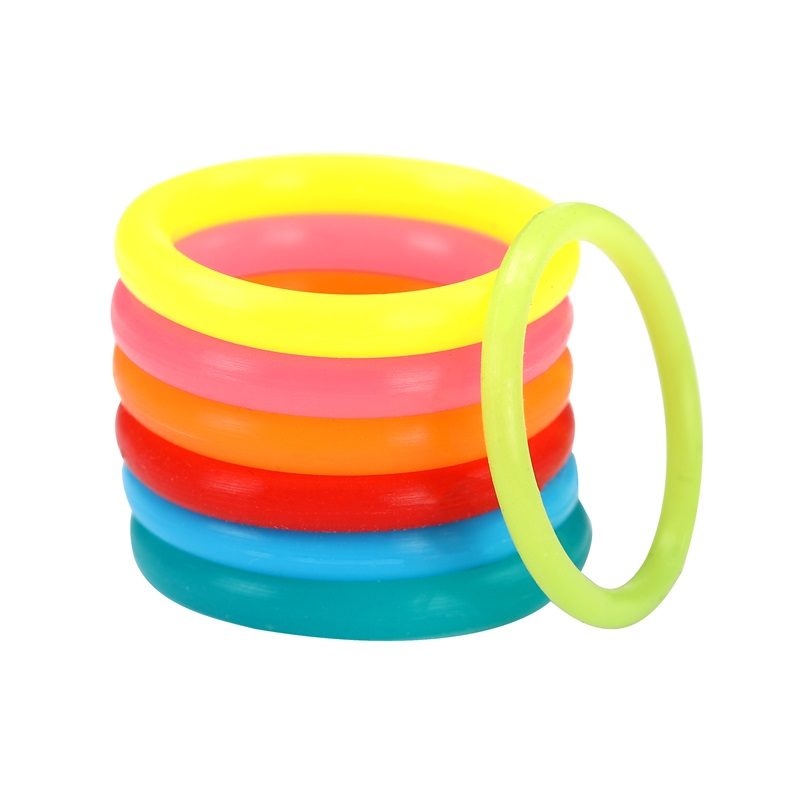

We stock popular AS568 and metric sizes for fast dispatch, and open new tooling for nonstandard dimensions at low mold cost. Colorful silicone O-rings, food-grade compounds and custom hardness (20–90 Shore A) are all available.

  • ✓Full range of AS568 (inch) and metric standard sizes
  • ✓Nonstandard IDs, cross-sections and colors molded to print
  • ✓NBR, VMQ silicone, EPDM, FKM and FFKM compounds
  • ✓Every batch dimensionally checked; test reports on request
STANDARDS
AS568 · ISO 3601 · Metric
HARDNESS
20–90 Shore A
DOCUMENTATION
PPAP available
TESTING
ASTM D2000
TECHNICAL DATA

Compounds & Temperature Range

Pick the elastomer that fits your media and working temperature — or send your requirements and our engineers will recommend one.

MaterialPropertiesTemp. Range
NBR (Buna-N)Excellent resistance to petroleum oil, fuel, water and hydraulic fluids; great abrasion resistance.-54°C to +149°C
VMQ SiliconeWidest temperature range, odorless and non-toxic; ideal for food, medical and outdoor seals.-60°C to +230°C
EPDMOutstanding heat, ozone, weather and aging resistance; economical for water, steam and antifreeze.-50°C to +150°C
FKM (Viton®)Excellent high-temperature and chemical resistance for oils, fuels and aggressive media.-20°C to +205°C
FFKMPerfluoroelastomer for the harshest chemical and high-temperature service.-20°C to +300°C
APPLICATIONS

Where It's Used

One sealing geometry, hundreds of applications.

AUTO

Automotive

Engines, transmissions, fuel and cooling systems — PPAP documentation available.

HYDR

Hydraulics & Pneumatics

Cylinders, valves and pumps where dynamic sealing life matters.

FOOD

Food & Beverage

Food-grade silicone compounds for pumps, fillers and process lines.

MED

Medical

Non-toxic VMQ seals for devices and fluid handling.

OIL

Oil & Gas

FKM and FFKM seals for aggressive media and high temperatures.

ELEC

Electronics

Dust- and moisture-proofing for enclosures and connectors.

COMMON QUESTIONS

O-Ring FAQ

What sizes do you keep in stock?
Popular AS568 inch sizes and common metric sizes are stocked for fast dispatch. Anything outside the stock list is molded to your drawing with low tooling cost.
Can you match a sample I send you?
Yes. Send the sample or a drawing with dimensions, material and hardness — our engineers reverse-engineer it and confirm before tooling.
Do you provide material test reports?
Yes. Every batch is tested to ASTM D2000, and material test reports are available on request. PPAP documentation is available for automotive programs.
What colors are available?
Black is standard; red, blue, green, white/translucent food-grade silicone and other custom colors are available on request.
Do you make food-grade colorful silicone O-rings?
Yes. Our colorful metric silicone (VMQ) O-rings are food-grade — odorless, non-leaching and compliant with FDA / USP VI. Typical uses: water dispensers, coffee machines, ovens, steamers and food-line valves with direct food contact, plus sterilization equipment in medical and pharmaceutical plants.
How do I choose between NBR, FKM, silicone and EPDM?
Mineral or hydraulic oil → NBR; high-temperature oil → FKM; food contact, high-temperature air, oil-free or outdoor static sealing → VMQ silicone; hot water and antifreeze → EPDM. Note that silicone is not suitable for mineral oil or high-pressure dynamic service.
